  • YG-1 Z4245 No.6-32.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

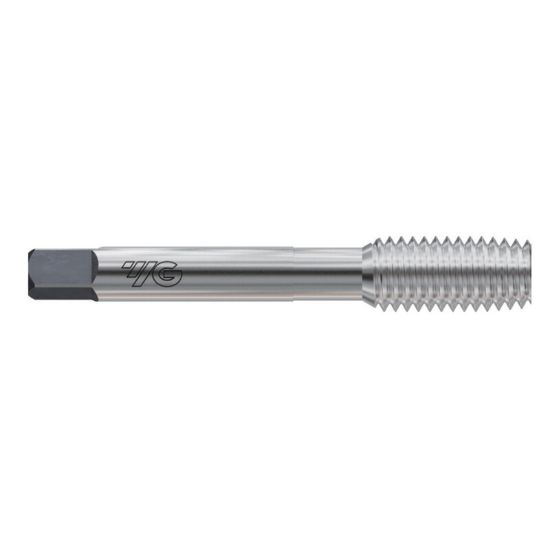

Picture of YG-1 Z4245 No.6-32.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 Z4245 No.6-32.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z4245
Delivery date: 3-5 days
$10.33

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Tapping, Through Hole Tapping, Roll Form Tapping, Plug Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Thread Type NC/UNC
Length Type Standard
Thread Size No.6
Tool Material Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Thread Pitch 32.00TPI
Thread Limit H5/GH5
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
