  • YG-1 Z3660 5/8-18.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

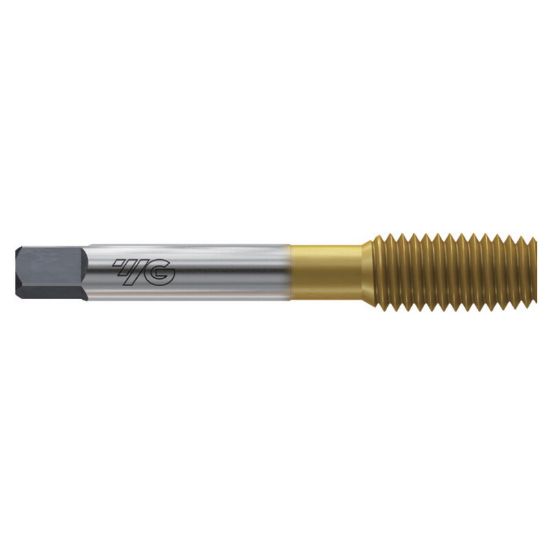

Picture of YG-1 Z3660 5/8-18.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z3660 5/8-18.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z3660
Delivery date: 3-5 days
$59.40

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Made In USA No
Package Size 1
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Thread Size 5/8"
Thread Limit H10
Length Type Standard
Tap Type Bottoming
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Roll Form
Tap Chamfer 1.5P-2.0P
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Tap Square 0.3600
Machine Side Connection Type Tap Collet
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 3.8120 96.82MM
Drill Range 0.5965 15.15MM - 0.6039 15.34MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
