  • YG-1 Z3600 9/16-12.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

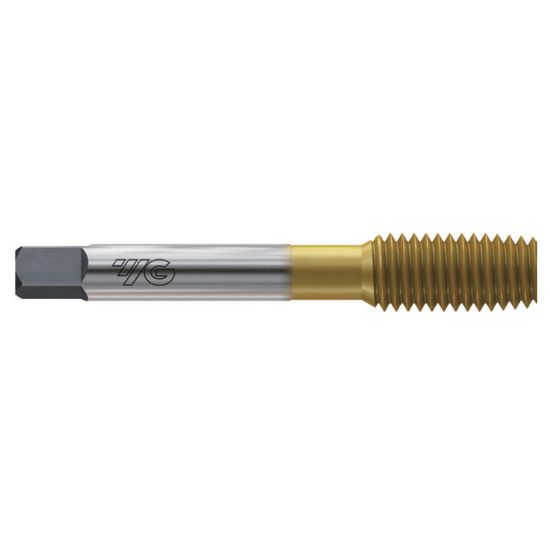

Picture of YG-1 Z3600 9/16-12.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z3600 9/16-12.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z3600
Delivery date: 3-5 days
$54.41

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Type NC/UNC
Tap Style Roll Form
Machine Side Connection Type Tap Collet
Tap Square 0.3220
Thread Size 9/16"
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Drill Range 0.5197 13.20MM - 0.5311 13.49MM
Thread Pitch 12.00TPI
Overall Len 3.5900 91.19MM
Tap Chamfer 1.5P-2.0P
Thread Limit H10
Dimension Standard ANSI/ANSI
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
