  • YG-1 Z3588 1/2-20.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

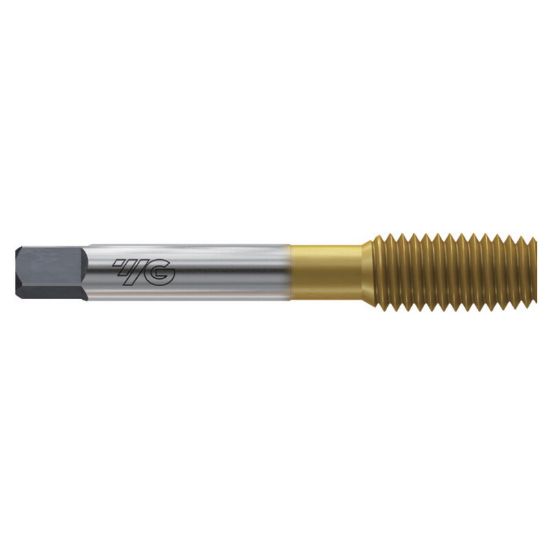

Picture of YG-1 Z3588 1/2-20.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z3588 1/2-20.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z3588
Delivery date: 3-5 days
$33.36

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Package Size 1
Coating TiN
Shipping State Illinois
Dimensional Specifications
Thread Size 1/2"
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Thread Pitch 20.00TPI
Length Type Standard
Tap Style Roll Form
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Limit H8/GH8
Tap Chamfer 1.5P-2.0P
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tool Material Steel
Drill Range 0.4744 12.05MM - 0.4811 12.22MM
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
