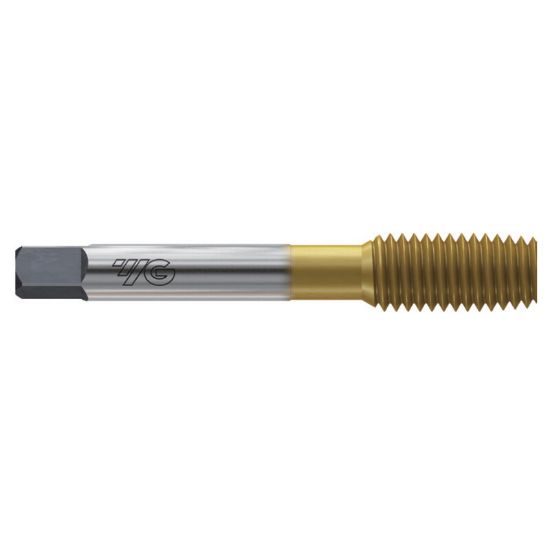

Picture of YG-1 Z3585 1/2-20.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z3585 1/2-20.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z3585
Delivery date: 3-5 days
$33.36

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Coating TiN
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Limit H5/GH5
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tap Style Roll Form
Tap Chamfer 1.5P-2.0P
Thread Size 1/2"
Tool Material Steel
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Pitch 20.00TPI
Drill Range 0.4744 12.05MM - 0.4811 12.22MM
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
