  • YG-1 Z3568 1/2-13.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

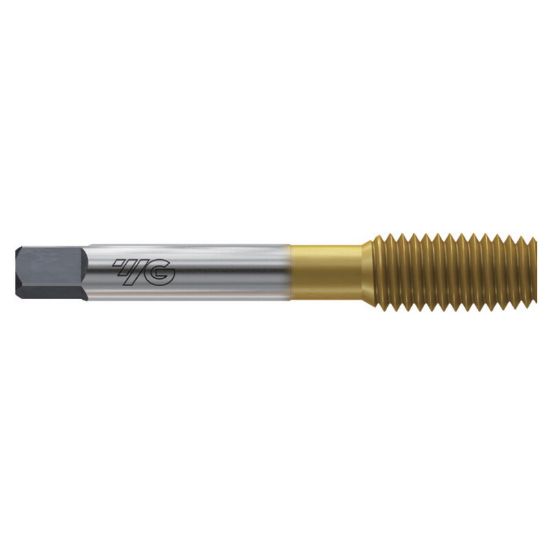

Picture of YG-1 Z3568 1/2-13.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z3568 1/2-13.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z3568
Delivery date: 3-5 days
$33.36

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.4606 11.70MM - 0.4720 11.99MM
Tap Square 0.2750
Tap Chamfer 1.5P-2.0P
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Length Type Standard
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Thread Size 1/2"
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Thread Pitch 13.00TPI
Thread Type NC/UNC
Tap Style Roll Form
Thread Limit H8/GH8
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
