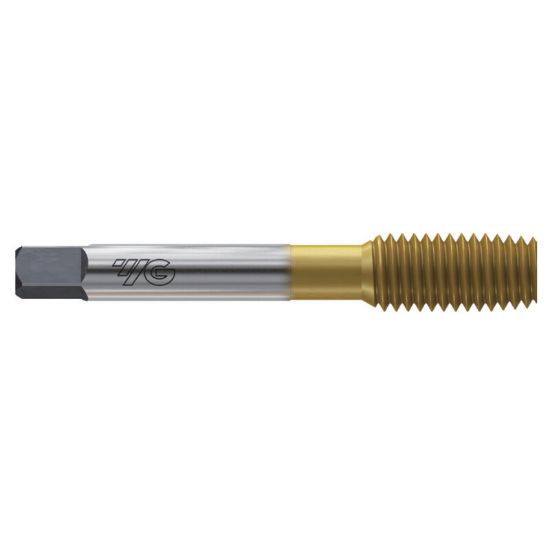

Picture of YG-1 Z3548 7/16-20.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z3548 7/16-20.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z3548
Delivery date: 3-5 days
$28.81

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Coating TiN
Made In USA No
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Tap Square 0.2420
Thread Size 7/16"
Thread Limit H8/GH8
Overall Len 3.1560 80.16MM
Tool Material Steel
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Thread Pitch 20.00TPI
Length Type Standard
Tap Style Roll Form
Drill Range 0.4118 10.46MM - 0.4185 10.63MM
Tap Chamfer 1.5P-2.0P
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
