  • YG-1 Z3447 5/16-18.00TPI Over Sized Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

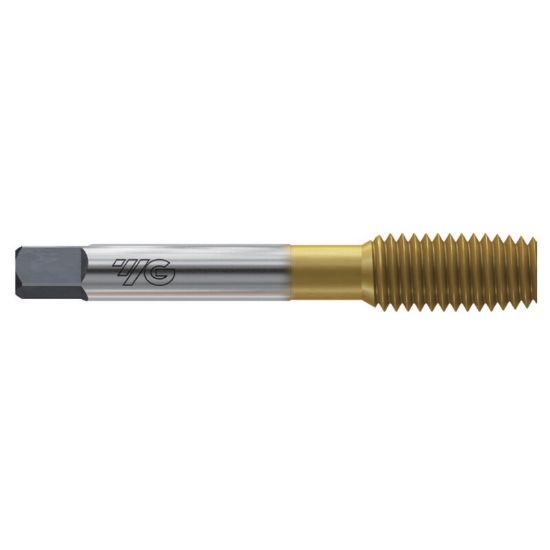

Picture of YG-1 Z3447 5/16-18.00TPI Over Sized Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z3447 5/16-18.00TPI Over Sized Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z3447
Delivery date: 3-5 days
$14.01

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Over Sized Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Package Size 1
Performance Rating General Performance
Coating TiN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit GH7 +0.0035
Drill Range 0.2839 7.21MM - 0.2913 7.40MM
Tap Square 0.2380
Tap Style Over Sized Roll Form
Thread Pitch 18.00TPI
Tap Chamfer 1.5P-2.0P
Machine Side Connection Type Tap Collet
Thread Type NC/UNC
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Thread Size 5/16"
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
