  • YG-1 Z3426 1/4-28.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

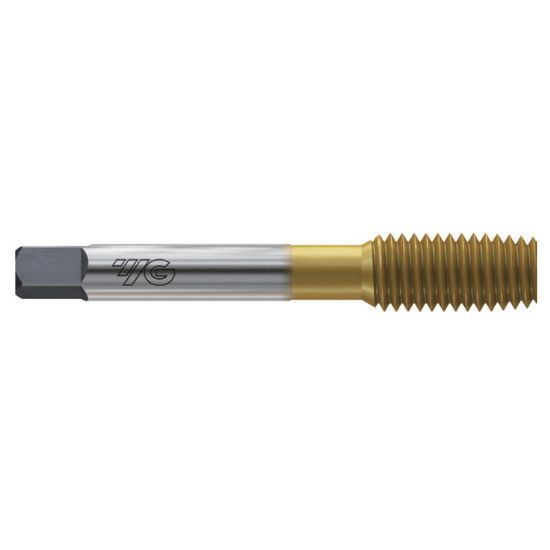

Picture of YG-1 Z3426 1/4-28.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z3426 1/4-28.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z3426
Delivery date: 3-5 days
$12.00

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Bottom Tapping, Tapping, Blind Hole Tapping, Roll Form Tapping
Performance Rating General Performance
Coating TiN
Made In USA No
Dimensional Specifications
Thread Limit H6/GH6
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Tap Style Roll Form
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Drill Range 0.2315 5.88MM - 0.2362 6.00MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Thread Size 1/4"
Thread Pitch 28.00TPI
Shank/Pilot Dia 0.2550 6.48MM
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
