  • YG-1 Z2700 3/4-10.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

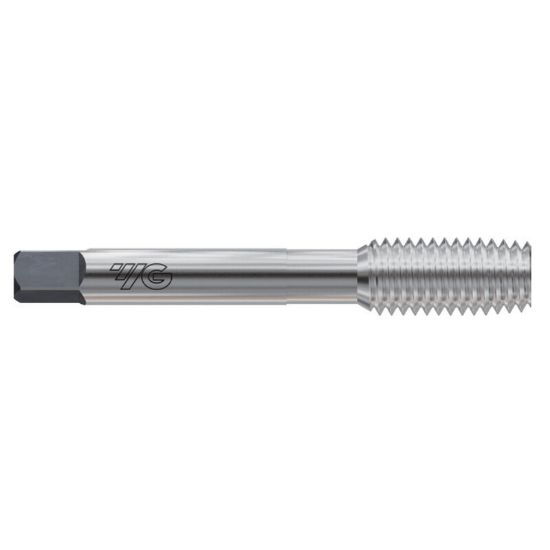

Picture of YG-1 Z2700 3/4-10.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

YG-1 Z2700 3/4-10.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z2700
Delivery date: 3-5 days
$70.71

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Length Type Standard
Tap Type Bottoming
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Tap Chamfer 1.5P-2.0P
Thread Pitch 10.00TPI
Thread Limit H10
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Thread Type NC/UNC
Overall Len 4.2500 107.95MM
Tap Style Roll Form
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Drill Range 0.6988 17.75MM - 0.7126 18.10MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
