  • YG-1 Z2102 No.2-64.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

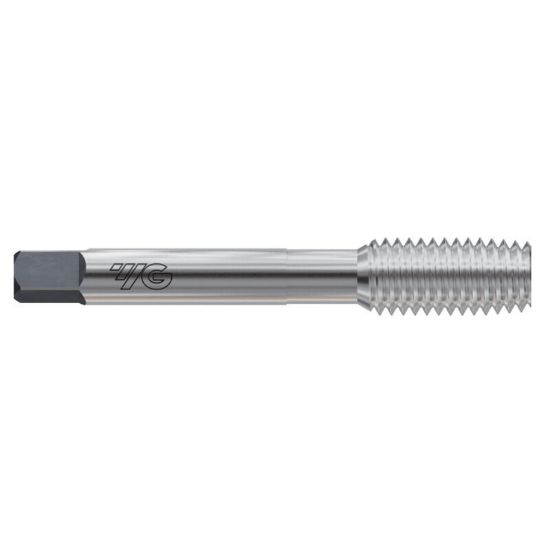

Picture of YG-1 Z2102 No.2-64.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

YG-1 Z2102 No.2-64.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z2102
Delivery date: 3-5 days
$15.36

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Thread Size No.2
Drill Range 0.0780 1.98MM - 0.0799 2.03MM
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Thread Limit H3/GH3
Tap Style Roll Form
Thread Pitch 64.00TPI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
