  • YG-1 Z2082 No.2-56.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

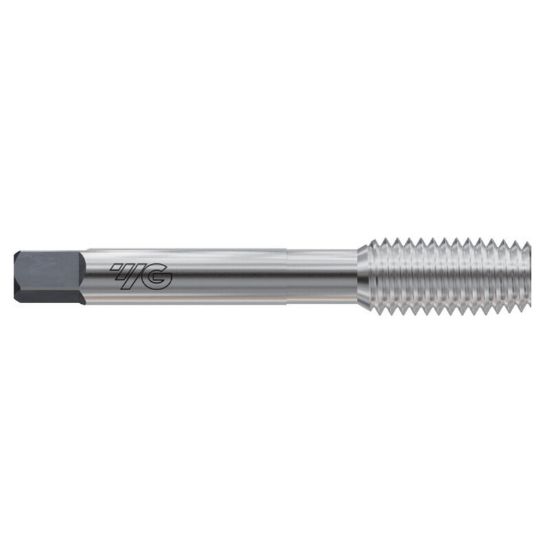

Picture of YG-1 Z2082 No.2-56.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

YG-1 Z2082 No.2-56.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z2082
Delivery date: 3-5 days
$15.36

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Drill Range 0.0768 1.95MM - 0.0791 2.01MM
Tap Chamfer 1.5P-2.0P
Dimension Standard ANSI/ANSI
Thread Size No.2
Thread Type NC/UNC
Thread Limit H3/GH3
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Tap Square 0.1100
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
