  • YG-1 Z1487 3/8-16.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

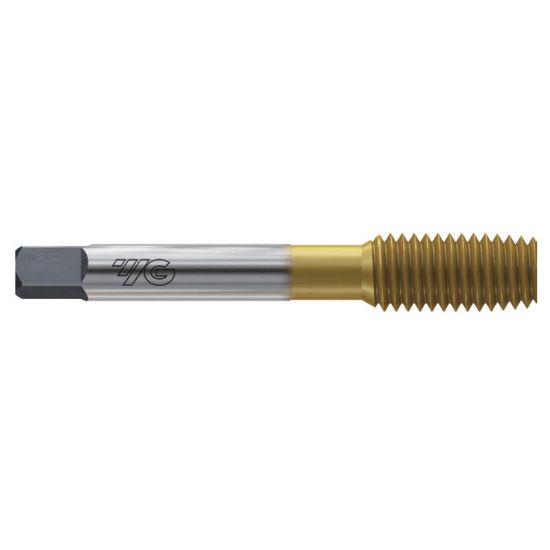

Picture of YG-1 Z1487 3/8-16.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 Z1487 3/8-16.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z1487
Delivery date: 3-5 days
$18.41

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Through Hole Tapping, Over Sized Tapping, Plug Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit GH7 +0.0035
Tap Style Over Sized Roll Form
Dimension Standard ANSI/ANSI
Tap Square 0.2860
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Thread Size 3/8"
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Tool Material Steel
Overall Len 2.9370 74.60MM
Thread Pitch 16.00TPI
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
