  • YG-1 Z1485 3/8-16.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

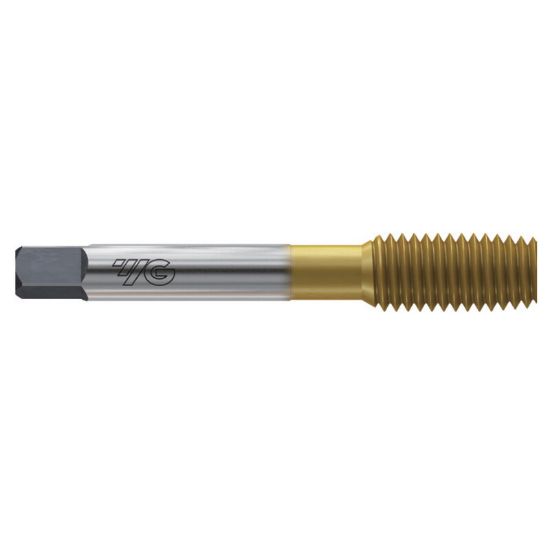

Picture of YG-1 Z1485 3/8-16.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 Z1485 3/8-16.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z1485
Delivery date: 3-5 days
$18.41

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Roll Form Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Size 3/8"
Tap Square 0.2860
Tap Style Roll Form
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Thread Limit H5/GH5
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Type Plug
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
