  • YG-1 Z0728 3/4-16.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

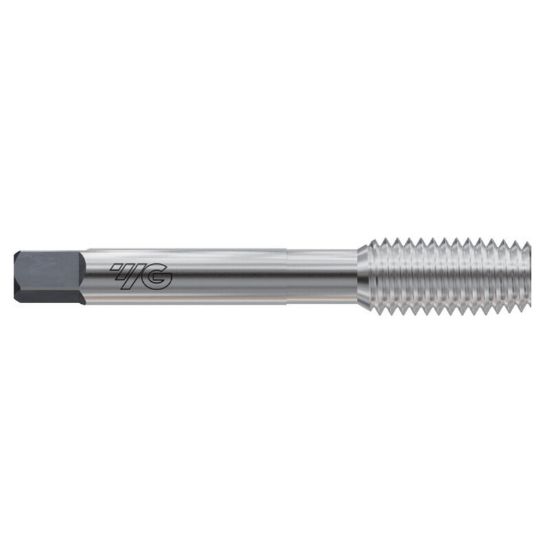

Picture of YG-1 Z0728 3/4-16.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 Z0728 3/4-16.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z0728
Delivery date: 3-5 days
$70.71

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Through Hole Tapping, Plug Tapping, Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Thread Size 3/4"
Tap Type Plug
Drill Range 0.7177 18.23MM - 0.7264 18.45MM
Length Type Standard
Thread Limit H8/GH8
Tap Square 0.4420
Overall Len 4.2500 107.95MM
Tap Style Roll Form
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
