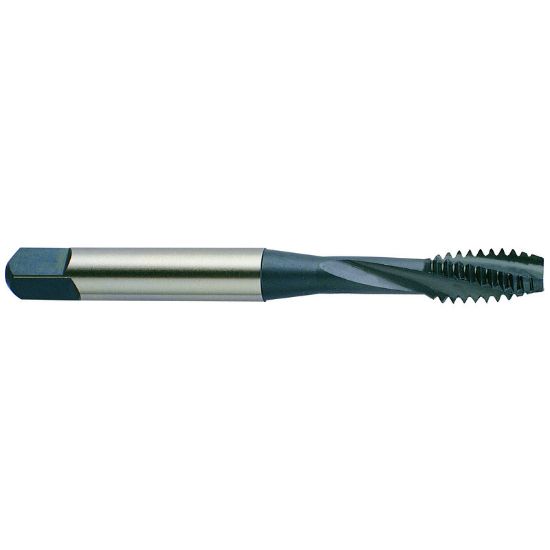

YG-1 TR858315HAR M6-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TR858315HAR
Delivery date: 3-5 days
$28.29

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Hardslick
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Thread Size M6
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Type Mod Bottom
Tool Material Steel
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.2550 6.48MM
Thread Type Metric
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Mold Yes
Job Shop Yes
