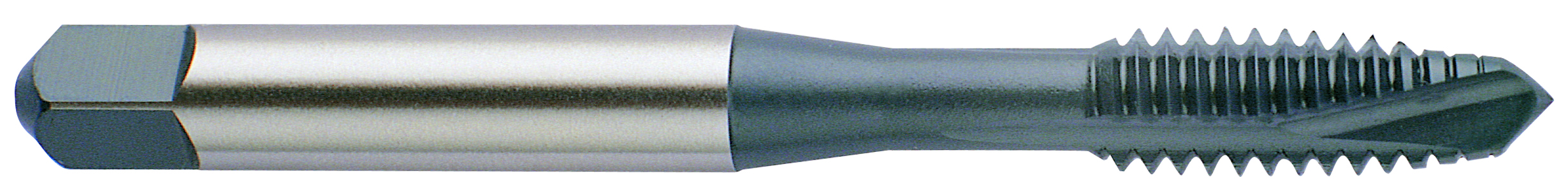

Picture of YG-1 TR808516HAR M12-1.50mm Cut Spiral Point Plug 4.0P-5.0P HSS Hardslick

YG-1 TR808516HAR M12-1.50mm Cut Spiral Point Plug 4.0P-5.0P HSS Hardslick

Part Number: YG-TR808516HAR
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M12 × 1.50MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1167391
Vendor: Sussex Tool and Supply
$65.66

Description

YG-1 TR808516HAR M12x1.50MM Cut Spiral Point Plug 4.0P-5.0P HSS Hardslick D6 Metric Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 3.3800 85.85MM
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Thread Pitch 1.50MM
Thread Size M12
Tap Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Tap Square 0.2750
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D6
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Hardslick
Standards & Identification
Dimension Standard ANSI/ANSI
