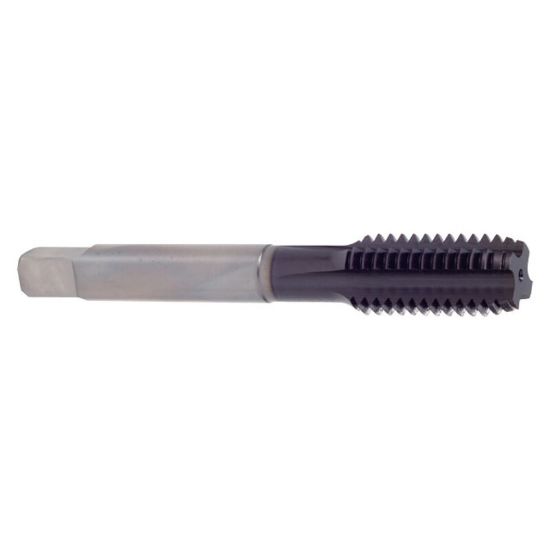

YG-1 TR725 3/4-16.00TPI Cut Straight Flute Mod Bottom 2.0P-3.0P Super HSS TiAlN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TR725
Delivery date: 3-5 days
$103.92

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Coating TiAlN
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Thread Size 3/4"
Cut Rating Ductile Iron, Gray Iron
Shank/Pilot Dia 0.5900 14.99MM
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Tool Material Steel
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Thread Pitch 16.00TPI
Thread Limit H5/GH5
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Overall Len 4.2500 107.95MM
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
