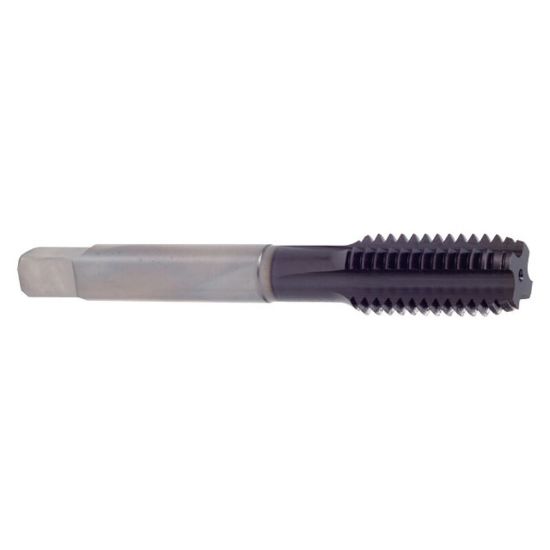

YG-1 TR676R M18-1.50MM Cut Straight Flute Mod Bottom 2.0P-3.0P Super HSS TiAlN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TR676R
Delivery date: 3-5 days
$106.11

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiAlN
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.4800 12.19MM
Drill Range 0.6472 16.44MM - 0.6626 16.83MM
Tap Chamfer 2.0P-3.0P
Tap Style Cut Straight Flute
Thread Size M18
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 4.0310 102.39MM
Thread Type Metric
Thread Limit D6
Cut Rating Ductile Iron, Gray Iron
Tap Square 0.3600
Flutes/Inserts 4
Length Type Standard
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
