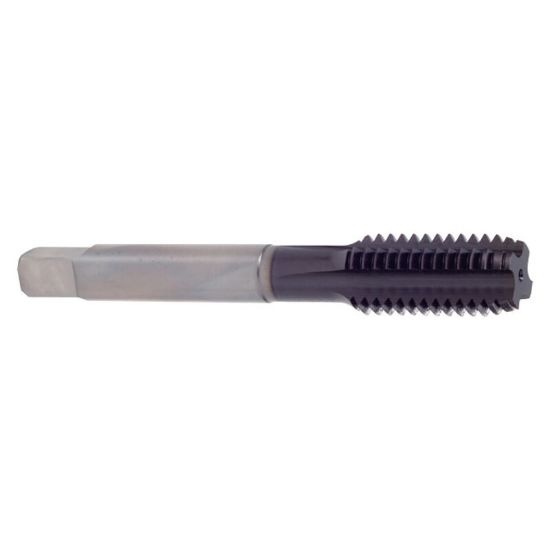

YG-1 TR645R 5/8-11.00TPI Cut Straight Flute Mod Bottom 2.0P-3.0P Super HSS TiAlN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TR645R
Delivery date: 3-5 days
$121.64

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating General Performance
Coating TiAlN
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Overall Len 3.8120 96.82MM
Tool Material Steel
Tap Square 0.3600
Cut Rating Ductile Iron, Gray Iron
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Thread Type NC/UNC
Flutes/Inserts 4
Length Type Standard
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 2.0P-3.0P
Thread Size 5/8"
Thread Limit H5/GH5
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
