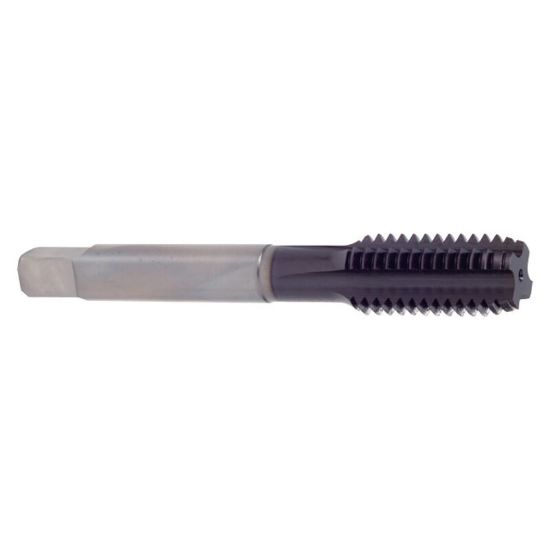

YG-1 TR556A M14-1.50MM Cut Straight Flute Mod Bottom 2.0P-3.0P Super HSS TiAlN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TR556A
Delivery date: 3-5 days
$56.21

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Package Size 1
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 4
Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Overall Len 3.5900 91.19MM
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Thread Type Metric
Thread Limit D6
Cut Rating Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Tap Square 0.3220
Thread Size M14
Thread Pitch 1.50MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
