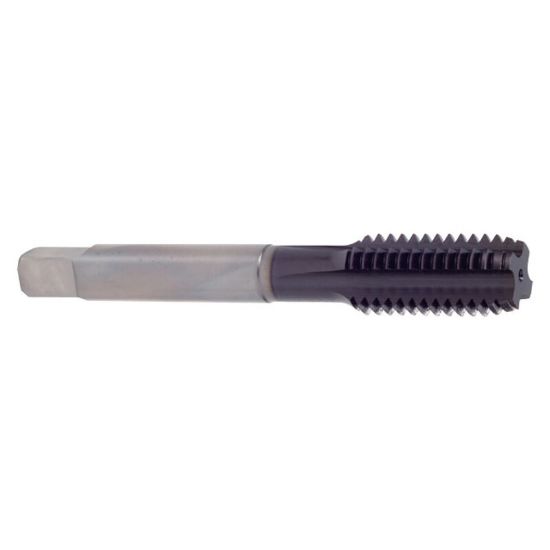

YG-1 TR526 M12-1.25MM Cut Straight Flute Mod Bottom 2.0P-3.0P Super HSS TiAlN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TR526
Delivery date: 3-5 days
$28.04

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiAlN
Shipping State Illinois
Application Cut Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Pitch 1.25MM
Cut Rating Ductile Iron, Gray Iron
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Tool Material Steel
Thread Size M12
Dimension Standard ANSI/ANSI
Overall Len 3.3800 85.85MM
Thread Type Metric
Thread Limit D6
Shank/Pilot Dia 0.3670 9.32MM
Tap Chamfer 2.0P-3.0P
Tap Style Cut Straight Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
