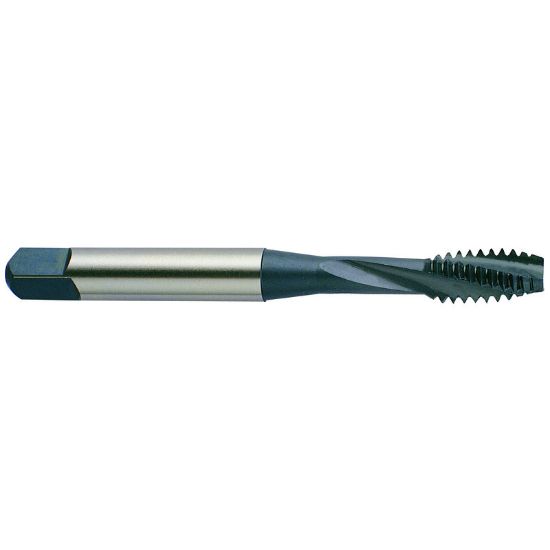

YG-1 TQ858203 M3-0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TQ858203
Delivery date: 3-5 days
$20.35

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Steel
Tap Square 0.1100
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M3
Thread Type Metric
Dimension Standard ANSI/ANSI
Overall Len 1.9370 49.20MM
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit D3
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
