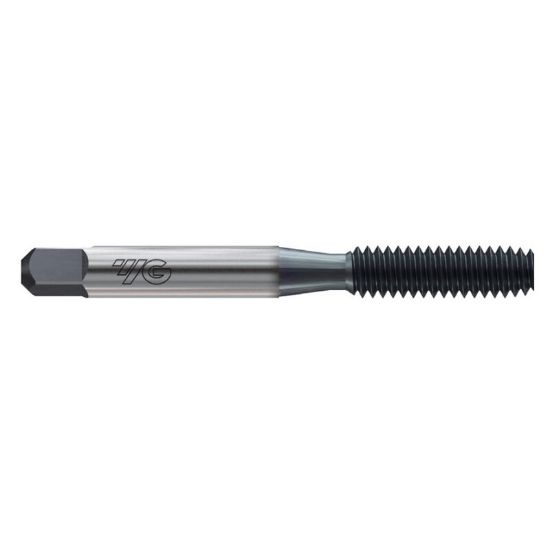

YG-1 TKR03283 No.8-32.00TPI Roll Form Mod Bottom 2.0P-3.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TKR03283
Delivery date: 3-5 days
$30.95

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Roll Form Tapping, Tapping, Mod Bottom Tapping
Coating TiCN
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Pitch 32.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Overall Len 2.1250 53.98MM
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.1680 4.27MM
Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Length Type Standard
Tap Style Roll Form
Thread Size No.8
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
