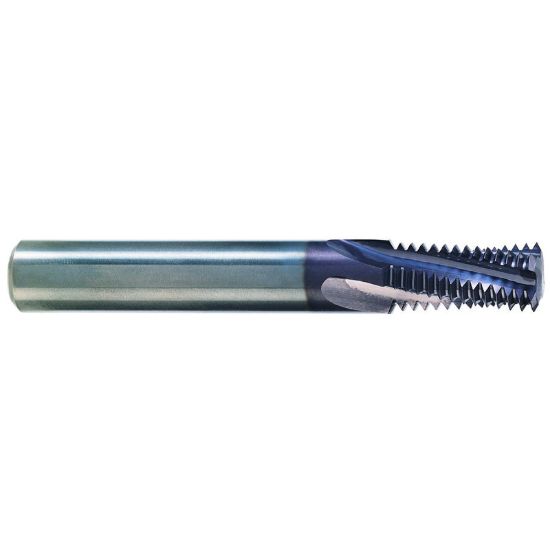

YG-1 TE760 Carbide Thread Mill 7/8" 14.00TPI 0.490 Dia 3.500 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1TE760
Delivery date: 3-5 days
$193.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Package Size 1
Coating TiAlN
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 0.4900 12.45MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutter Style Carbide Thread Mill
Thread Size 7/8"
Thread Pitch 14.00TPI
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.5000 88.90MM
Thread Type UN
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
