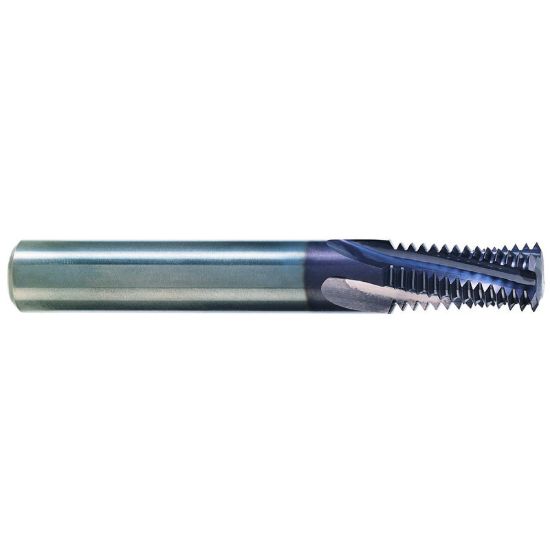

YG-1 TE640 Carbide Thread Mill 5/8" 11.00TPI 0.470 Dia 3.500 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1TE640
Delivery date: 3-5 days
$193.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Package Size 1
Application Thread Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Thread Size 5/8"
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Thread Pitch 11.00TPI
Machine Side Connection Size 0.5000 12.70MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutter Style Carbide Thread Mill
Thread Type UN
Cutter Dia 0.4700 11.94MM
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
