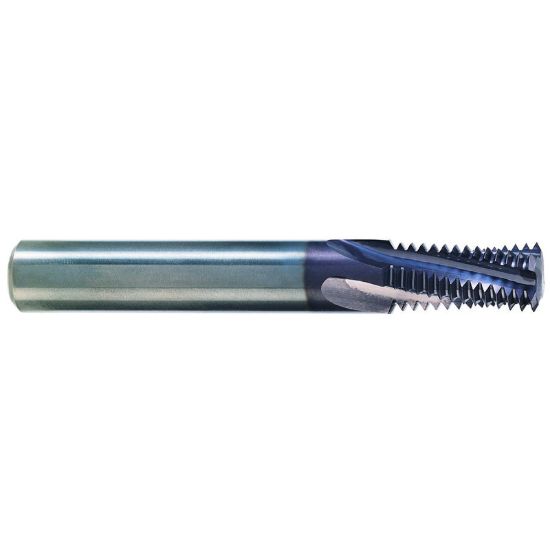

YG-1 TE460 Carbide Thread Mill 5/16" 24.00TPI 0.235 Dia 2.500 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1TE460
Delivery date: 3-5 days
$118.81

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Package Size 1
Coating TiAlN
Shipping State Illinois
Dimensional Specifications
Thread Type UN
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Cutter Dia 0.2350 5.97MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Thread Mill
Thread Pitch 24.00TPI
Machine Side Connection Size 0.2500 6.35MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
Thread Size 5/16"
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Mold Yes
Agricultural YES
Energy Yes
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
