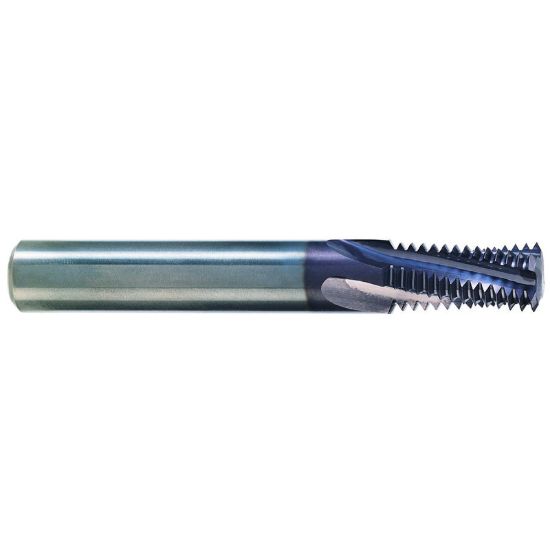

YG-1 TE440 Carbide Thread Mill 5/16" 18.00TPI 0.235 Dia 2.500 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1TE440
Delivery date: 3-5 days
$118.81

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiAlN
Shipping State Illinois
Application Thread Milling
Made In USA No
Dimensional Specifications
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Cutter Dia 0.2350 5.97MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
Thread Type UN
Thread Pitch 18.00TPI
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Thread Size 5/16"
Cutter Style Carbide Thread Mill
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
