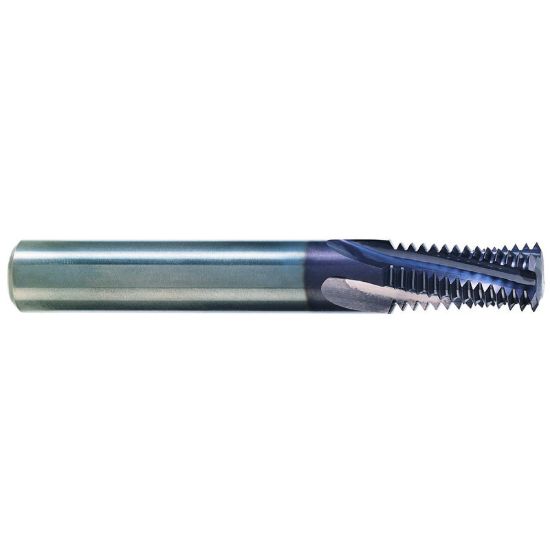

YG-1 TE320 Carbide Thread Mill #10 24.00TPI 0.120 Dia 2.000 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1TE320
Delivery date: 3-5 days
$90.75

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Thread Milling
Made In USA No
Coating TiAlN
Shipping State Illinois
Dimensional Specifications
Thread Size No.10
Thread Pitch 24.00TPI
Machine Side Connection Size 0.1250 3.18MM
Overall Len 2.0000 50.80MM
Cutter Style Carbide Thread Mill
Thread Type UN
Cutter Dia 0.1200 3.05MM - #31
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
