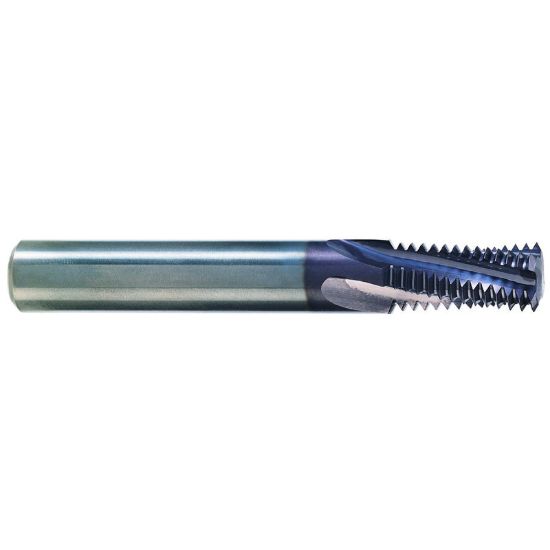

YG-1 TD530 Carbide Thread Mill M12 1.00MM 0.360 Dia 3.500 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1TD530
Delivery date: 3-5 days
$153.37

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Thread Milling
Made In USA No
Shipping State Illinois
Coating TiAlN
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Cutter Dia 0.3600 9.14MM
Cutter Style Carbide Thread Mill
Thread Type Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Thread Size M12
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Thread Pitch 1.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
