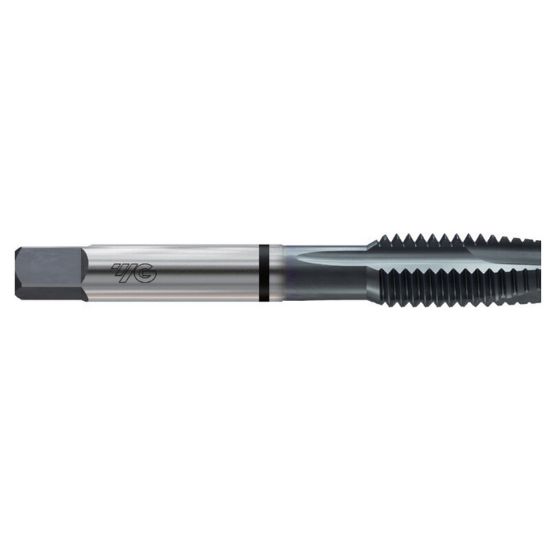

YG-1 TCH657C M18-2.50MM Cut Spiral Point Plug 4.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCH657C
Delivery date: 3-5 days
$66.45

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Coating TiCN
Package Size 1
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Tap Square 0.3600
Length Type Standard
Thread Pitch 2.50MM
Thread Type Metric
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Type Plug
Shank/Pilot Dia 0.4800 12.19MM
Thread Size M18
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit D7
Tool Material Steel
Overall Len 4.0310 102.39MM
Tap Chamfer 4.0P
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
