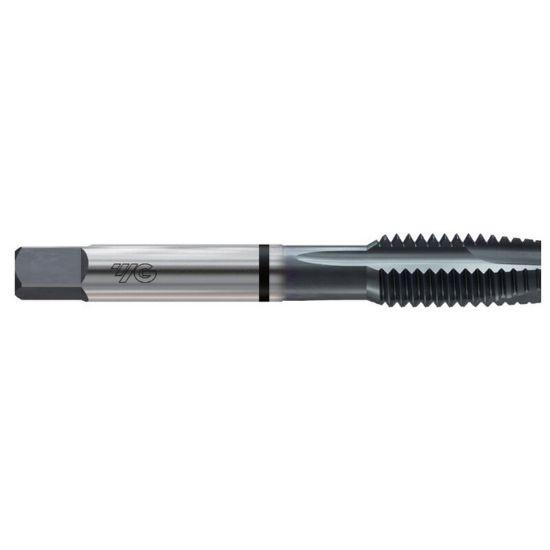

YG-1 TCH607C M16-2.00MM Cut Spiral Point Plug 4.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCH607C
Delivery date: 3-5 days
$46.01

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating TiCN
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Overall Len 3.8120 96.82MM
Thread Limit D7
Tool Material Steel
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Chamfer 4.0P
Thread Pitch 2.00MM
Thread Size M16
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type Metric
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Type Plug
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Tap Square 0.3600
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
