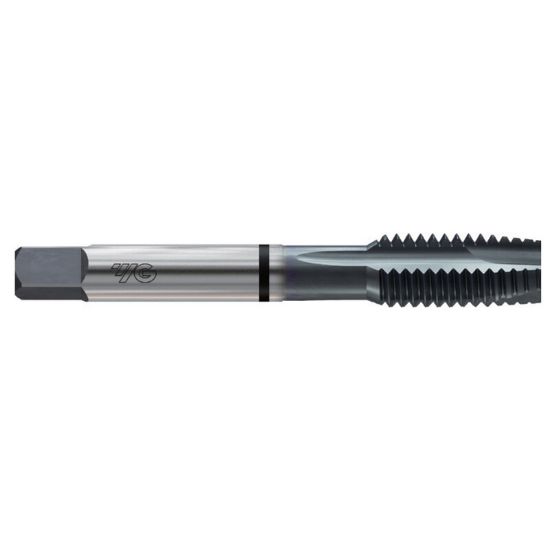

YG-1 TCG435C M10-1.25MM Cut Spiral Point Plug 4.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCG435C
Delivery date: 3-5 days
$26.21

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Package Size 1
Coating TiCN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 1.25MM
Tool Material Steel
Tap Chamfer 4.0P
Thread Size M10
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Thread Type Metric
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Thread Limit D5
Tap Style Cut Spiral Point
Overall Len 2.9370 74.60MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
