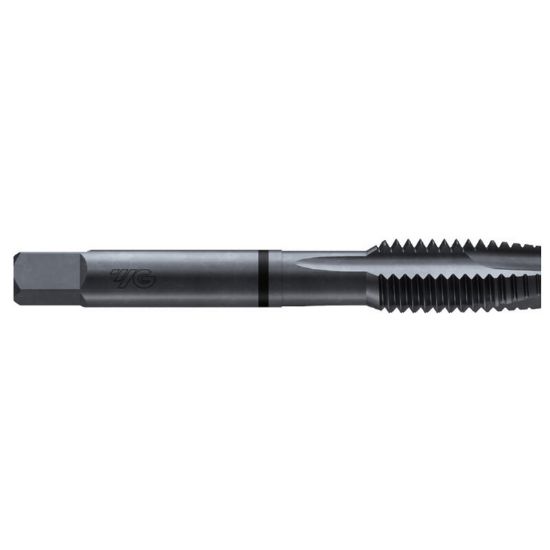

YG-1 TCF784S 1-8.00TPI Cut Spiral Point Plug 4.0P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCF784S
Delivery date: 3-5 days
$92.77

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit H4/GH4
Tap Type Plug
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Shank/Pilot Dia 0.8000 20.32MM
Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Thread Pitch 8.00TPI
Tap Square 0.6000
Thread Size 1"
Thread Type NC/UNC
Overall Len 5.1250 130.18MM
Length Type Standard
Tool Material Steel
Tap Chamfer 4.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
