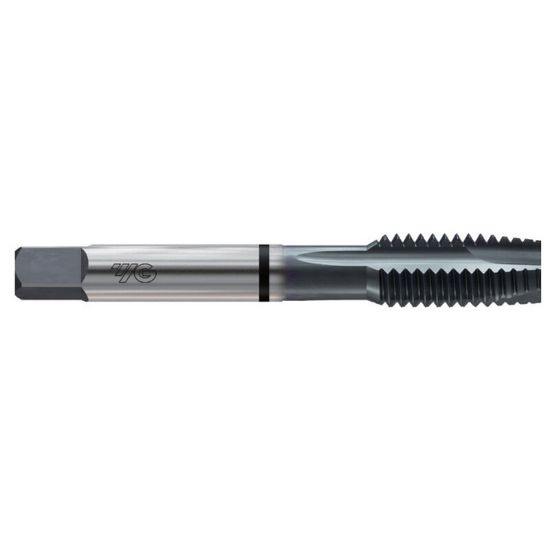

YG-1 TCF744C 7/8-9.00TPI Cut Spiral Point Plug 4.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCF744C
Delivery date: 3-5 days
$79.72

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Coating TiCN
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Shank/Pilot Dia 0.6970 17.70MM
Tap Type Plug
Thread Pitch 9.00TPI
Flutes/Inserts 3
Tap Square 0.5230
Tool Material Steel
Tap Chamfer 4.0P
Thread Type NC/UNC
Thread Limit H4/GH4
Machine Side Connection Type Tap Collet
Overall Len 4.6870 119.05MM
Tap Style Cut Spiral Point
Drill Range 0.7594 19.29MM - 0.7882 20.02MM
Length Type Standard
Thread Size 7/8"
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
