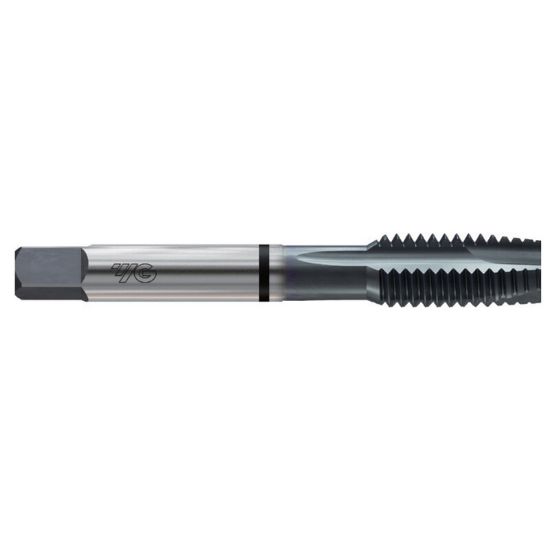

YG-1 TCF705C 3/4-10.00TPI Cut Spiral Point Plug 4.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCF705C
Delivery date: 3-5 days
$62.00

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Shipping State Illinois
Performance Rating High Performance
Coating TiCN
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Chamfer 4.0P
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Flutes/Inserts 3
Thread Pitch 10.00TPI
Thread Limit H5/GH5
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Style Cut Spiral Point
Thread Type NC/UNC
Overall Len 4.2500 107.95MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
