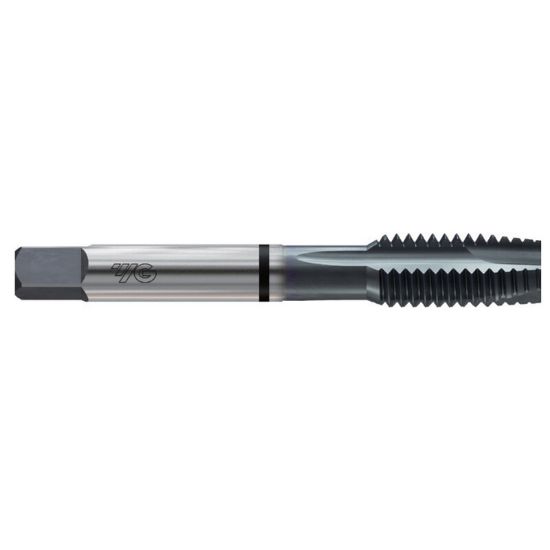

YG-1 TCF643C 5/8-11.00TPI Cut Spiral Point Plug 4.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCF643C
Delivery date: 3-5 days
$47.57

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating TiCN
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Overall Len 3.8120 96.82MM
Thread Size 5/8"
Tap Type Plug
Tool Material Steel
Tap Chamfer 4.0P
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type NC/UNC
Thread Limit H3/GH3
Length Type Standard
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
