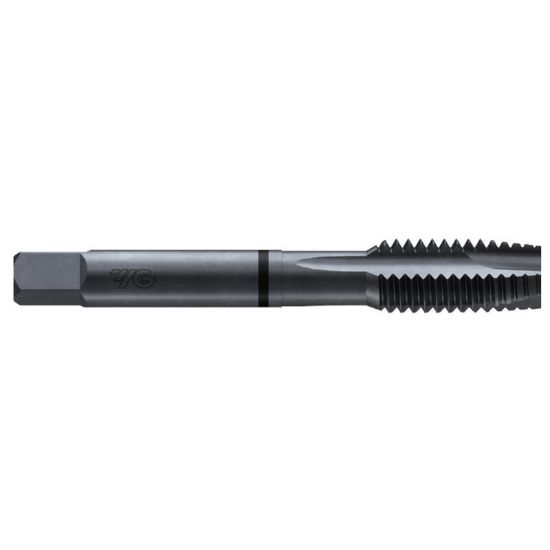

YG-1 TCE543S 7/16-20.00TPI Cut Spiral Point Plug 4.0P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCE543S
Delivery date: 3-5 days
$33.25

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Length Type Standard
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Point
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Thread Size 7/16"
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Overall Len 3.1560 80.16MM
Tap Type Plug
Tool Material Steel
Tap Chamfer 4.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
