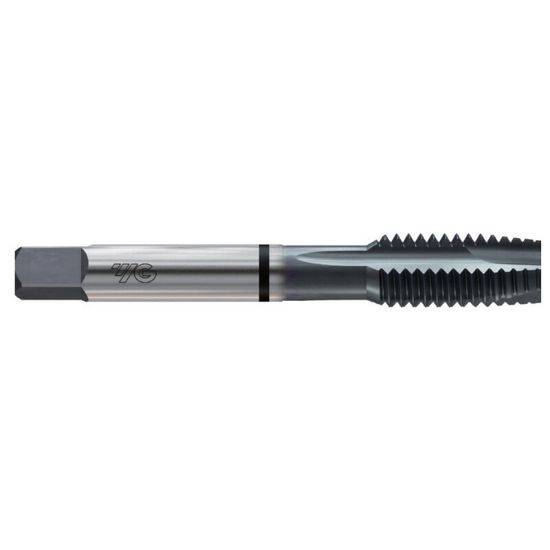

YG-1 TCE483C 3/8-16.00TPI Cut Spiral Point Plug 4.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCE483C
Delivery date: 3-5 days
$26.27

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Coating TiCN
Package Size 1
Dimensional Specifications
Overall Len 2.9370 74.60MM
Length Type Standard
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tool Material Steel
Tap Chamfer 4.0P
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Type Plug
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.3810 9.68MM
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
