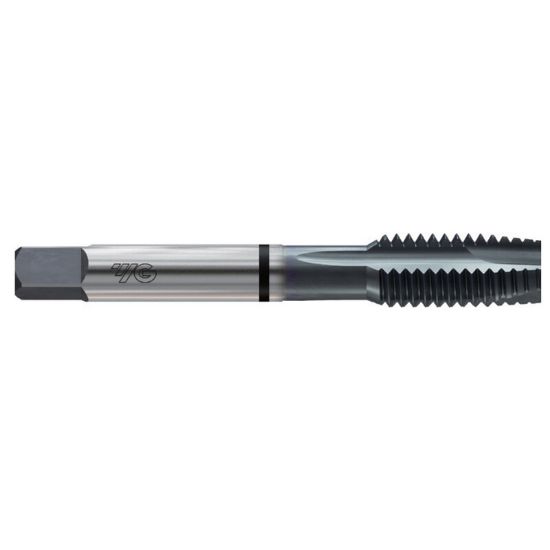

YG-1 TCE283C No.8-32.00TPI Cut Spiral Point Plug 4.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCE283C
Delivery date: 3-5 days
$17.71

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Shipping State Illinois
Coating TiCN
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Chamfer 4.0P
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Style Cut Spiral Point
Thread Pitch 32.00TPI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Type Plug
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Thread Size No.8
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
