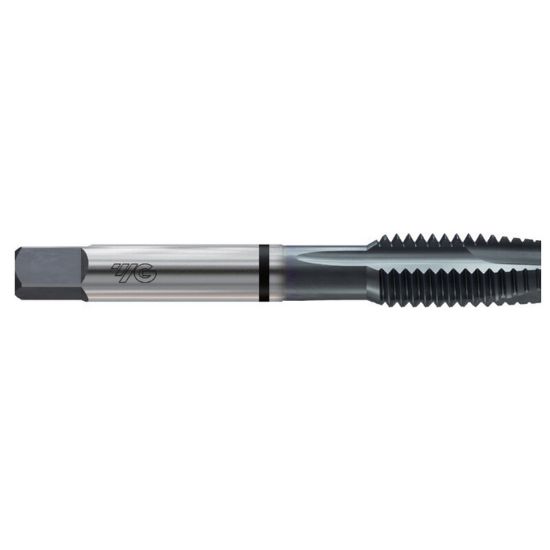

YG-1 TCE243C No.6-32.00TPI Cut Spiral Point Plug 4.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCE243C
Delivery date: 3-5 days
$17.71

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiCN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Thread Type NC/UNC
Thread Limit H3/GH3
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Length Type Standard
Flutes/Inserts 3
Thread Size No.6
Tool Material Steel
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Tap Chamfer 4.0P
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
