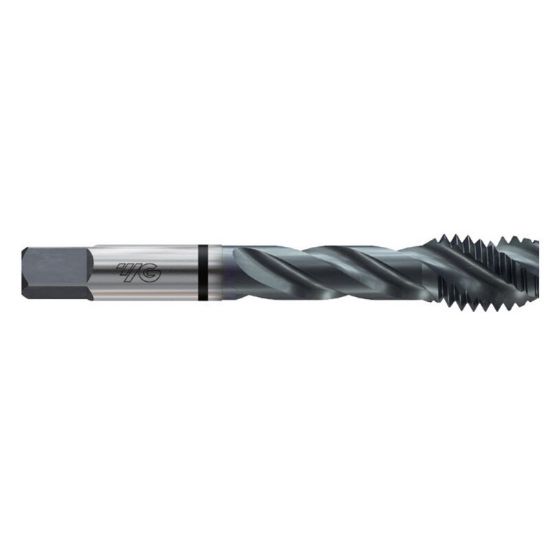

YG-1 TCD547C M14-2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCD547C
Delivery date: 3-5 days
$50.79

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Coating TiCN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit D7
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Dimension Standard ANSI/ANSI
Tap Chamfer 2.0P-3.0P
Flutes/Inserts 3
Thread Type Metric
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 3.5900 91.19MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 2.00MM
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Thread Size M14
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
