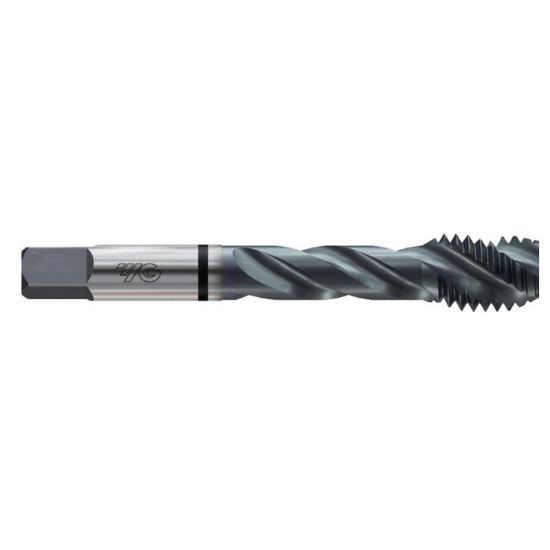

YG-1 TCC525C M12-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCC525C
Delivery date: 3-5 days
$47.77

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN
Package Size 1
Dimensional Specifications
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Shank/Pilot Dia 0.3670 9.32MM
Flute Direction R - Right
Length Type Standard
Thread Size M12
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Tool Material Steel
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 1.25MM
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
