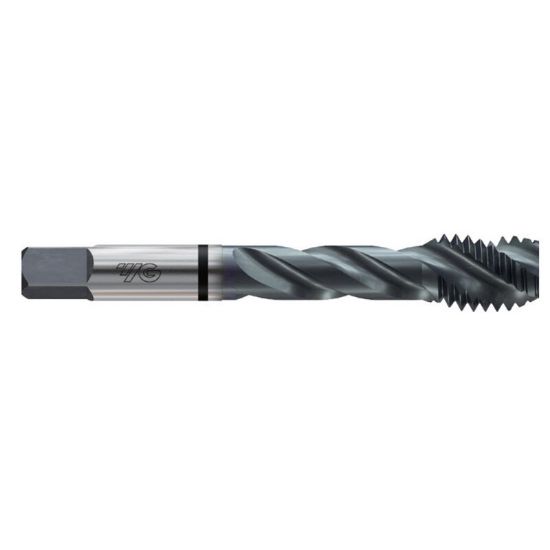

YG-1 TCC375C M8-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCC375C
Delivery date: 3-5 days
$26.65

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN
Package Size 1
Dimensional Specifications
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Thread Size M8
Tap Square 0.2380
Flutes/Inserts 3
Flute Direction R - Right
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
