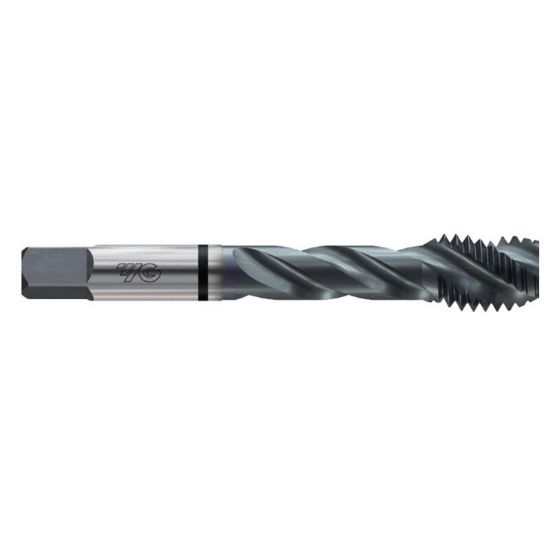

YG-1 TCB806C 1-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCB806C
Delivery date: 3-5 days
$123.27

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Limit H6/GH6
Tool Material Steel
Tap Square 0.6000
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Length Type Standard
Thread Pitch 12.00TPI
Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Shank/Pilot Dia 0.8000 20.32MM
Thread Size 1"
Overall Len 5.1250 130.18MM
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
