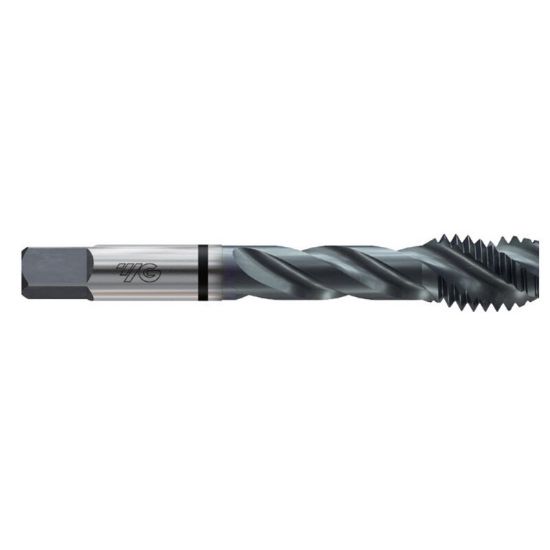

YG-1 TCB764C 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCB764C
Delivery date: 3-5 days
$91.33

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN
Package Size 1
Shipping State Illinois
Dimensional Specifications
Thread Size 7/8"
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Thread Pitch 14.00TPI
Thread Limit H4/GH4
Shank/Pilot Dia 0.6970 17.70MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Overall Len 4.6870 119.05MM
Tap Type Mod Bottom
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
