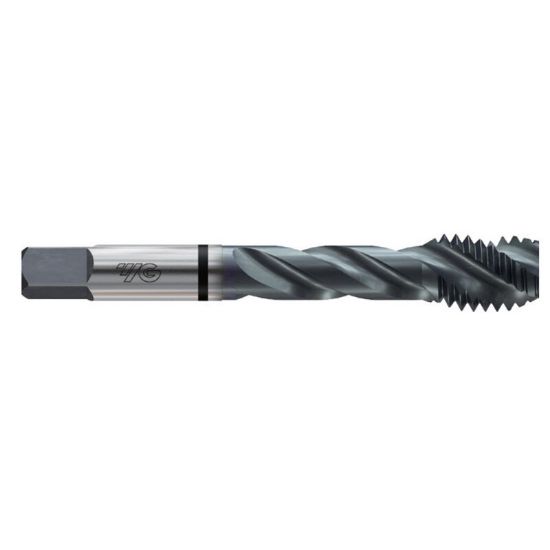

YG-1 TCB663C 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCB663C
Delivery date: 3-5 days
$54.49

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 4
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Length Type Standard
Overall Len 3.8120 96.82MM
Tap Square 0.3600
Thread Size 5/8"
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
