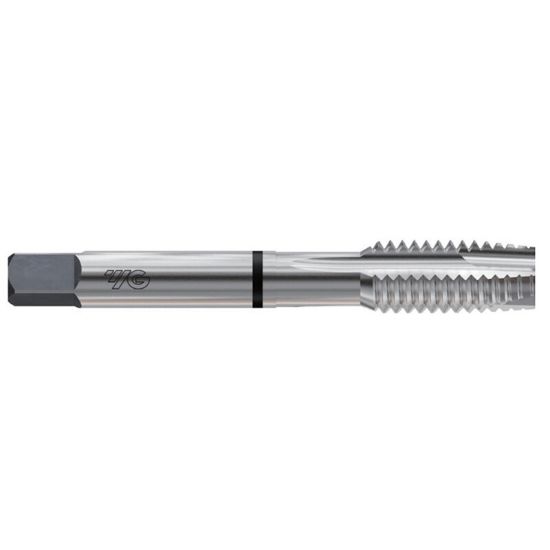

YG-1 TB766 7/8-14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TB766
Delivery date: 3-5 days
$83.01

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.6970 17.70MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Flutes/Inserts 3
Length Type Standard
Machine Side Connection Type Tap Collet
Overall Len 4.6870 119.05MM
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Thread Limit H6/GH6
Tool Material Steel
Thread Size 7/8"
Thread Pitch 14.00TPI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Type Plug
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
