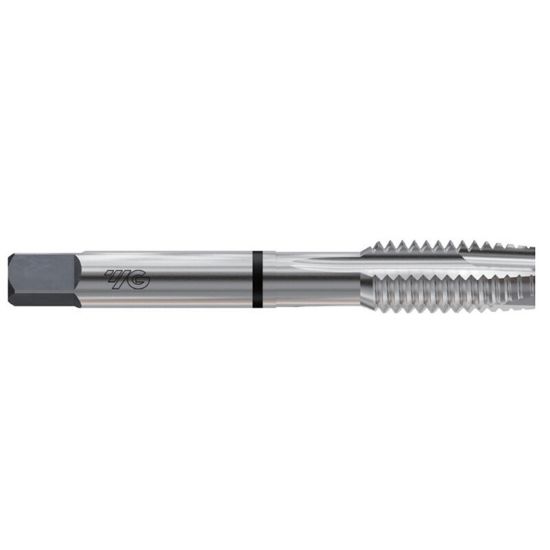

YG-1 TB705 3/4-10.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TB705
Delivery date: 3-5 days
$64.73

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Type Plug
Length Type Standard
Thread Pitch 10.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Style Cut Spiral Point
Thread Type NC/UNC
Overall Len 4.2500 107.95MM
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Chamfer 4.0P-5.0P
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
