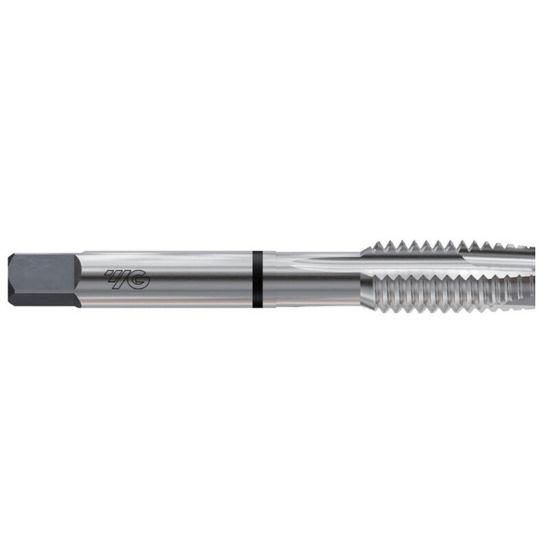

YG-1 TB565 1/2-13.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TB565
Delivery date: 3-5 days
$23.41

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tap Style Cut Spiral Point
Thread Pitch 13.00TPI
Thread Type NC/UNC
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Chamfer 4.0P-5.0P
Length Type Standard
Flutes/Inserts 3
Thread Size 1/2"
Tool Material Steel
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
